Accessories: Freedom X Combox 808-0822. Drip Shield 808-1050. Communications and Control (20 pin) 808-0820.

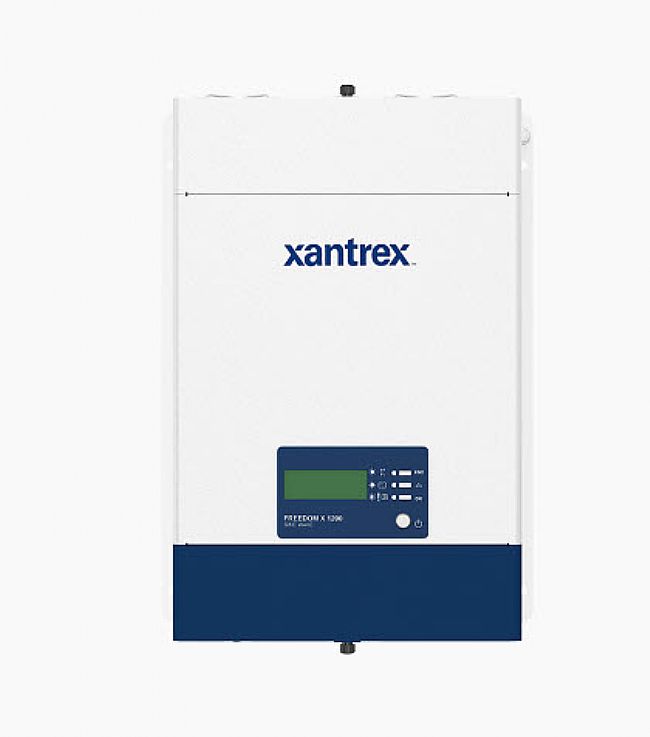

Engineered specifically to meet the needs of heavy duty trucks, the FREEDOM X 1200 offers a perfect blend of performance and cost. The FREEDOM X 1200 is ideal for installation in all types of commercial vehicles.

Its rugged, industrial design ensures optimum performance in all conditions. Quick connect terminals at AC input & output and pre-wired pigtails cables enable fast and easy installation on the assembly line. Conformal-coated circuit boards and heavy duty metal casing make the FREEDOM X 1200 ideal for mobile applications. It also features true sine wave output, 2x continuous power surge rating, built-in transfer switch and low battery voltage shutdown among other features. The FREEDOM X 1200 Pro has built-in communication card for integration with third-party monitoring and control display panels through RV-C connectivity.

Pair with FREEDOM X Combox for RV-C or NMEA2000 connectivity
The FREEDOM X Combox connects the FREEDOM X and XC families of inverter/chargers to an RV-C or NMEA2000 bus to support seamless integration with third party monitoring and control systems.

Back-up Capability with Fast Transfer Time
Incase of a blowout it automatically becomes a power source that supplies utility grade AC power to your loads when installed with DC battery.

Minimum Battery Drain
Built-in protection features safeguard your batteries like the low battery voltage alarm and shutdown and protect equipment such as a configurable AC transfer speed.

Overload and Over Temperature Alarm and Shutdown

Specifications:

• Output Power (continuous)1200 W
• Surge Rating2400 W
• Output Voltage Range110125 Vac
• Output Frequency Regulation (user configurable)50/60 Hz
• Output Wave FormTrue Sine Wave
• Efficiency (full load)> 86%
• Peak Efficiency> 91%
• Battery Voltage (nominal)12 Vdc

Dimensions in inches (L x W x H) 14.8 x 10.4 x 3.5 (376 x 263 x 91 mm)
